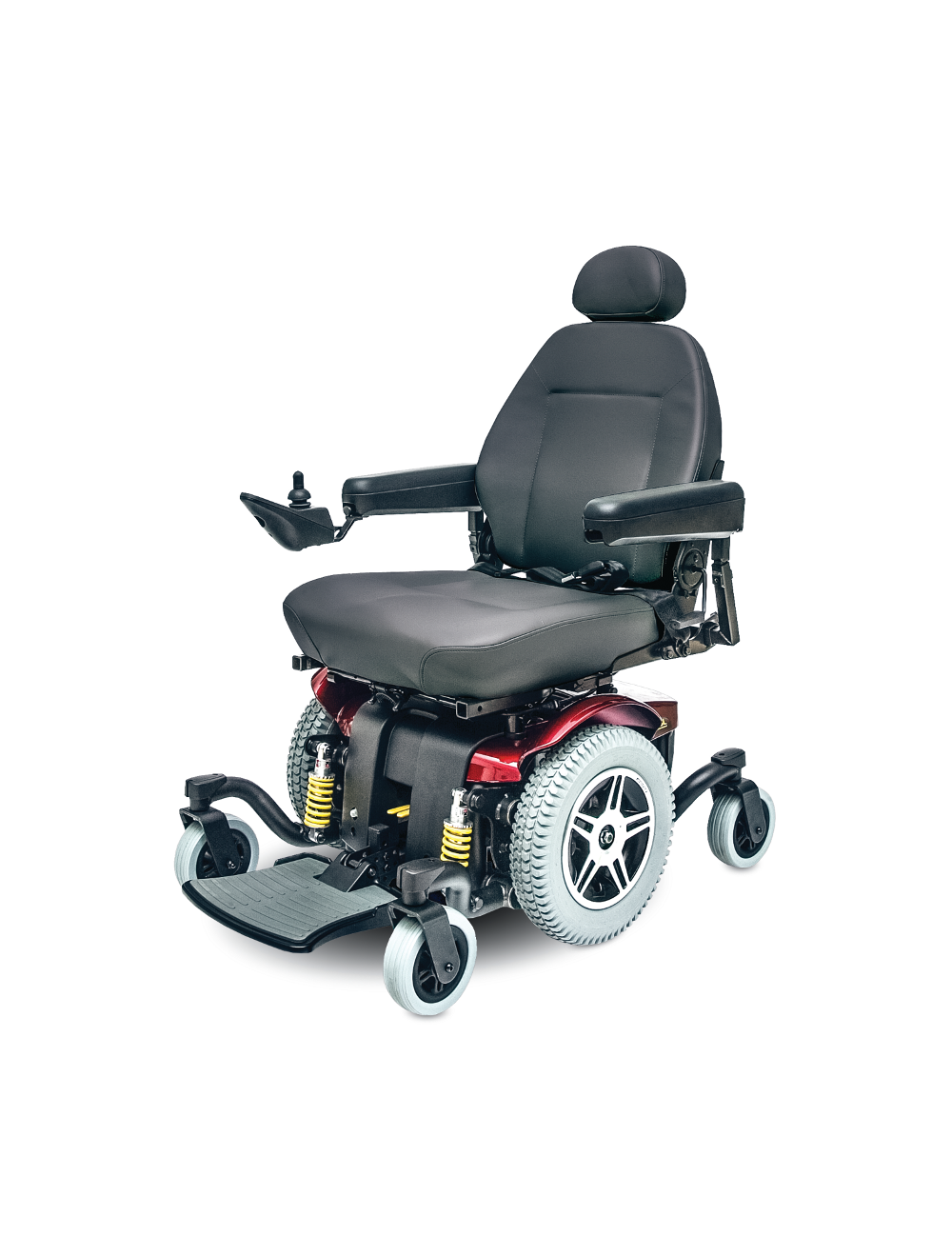

Pride Jazzy 614HD Bariatric Power Wheelchair

In stock
As low as $3,729.00 Regular Price $5,299.00
  • 5 Amp off-board charger
  • Weight Capacity: 450 lbs
  • 14" drive wheels are great for outdoor use
  • 6” casters on front & rear for maximum stability
More Information
HCPCS Jazzy 614HD 2HD-SS Code: K0824
Jazzy 614HD 2HD-C Code: K0825
Weight Capacity 450 lbs.
Maximum Speed 4.2 mph
Per Charge Range up to 11miles
Driving Range 11 Miles
Product Weight 240 lbs.
Heaviest piece 122 lbs.
Seat Depth 20" - 24"
Seat-to-Floor Height 20.5" - 23.5"
Overall Length 35.5"
Overall Width 25.25"
Front Wheel Size 6” solid casters
Mid Wheel Size 14” solid
Rear Wheel Size 6” solid casters
Controller 50A, Dynamic Shark controller
Motor Two-motor, in-line, Mid-Wheel 6®
Braking System Regenerative and electro-mechanical
Suspension Active-Trac® (ATX)
Drivetrain MWD
Base Weight 122 lbs.
Turning Radius 22.75”
Ground Clearance 2.25"
Number of Batteries Included 2 Lead Acid
Batteries 12 volt
Battery Type NF-22
Battery Weight 37 lbs. each
Charger Off-board, 5 amp
Warranty on Batteries 13-month limited on batteries
Warranty on Motor 13-month limited on drive motors
Warranty on Frame Lifetime limited on frame
Warranty on Electronics 13-month limited on electronics

The Jazzy® 614 HD features patented Mid-wheel 6® technology and Active-Trac ATX Suspension for an outstanding level of performance, maneuverability and tight turning radius, all in one heavy-duty package.

Independent front casters raise and lower as needed to compensate instantly for changes in terrain, making transitions easy.

The Jazzy 614 HD features dual enhanced in-line motors for greater efficiency, torque, range and performance.

Independent drive wheel suspension allows each drive wheel to be independently supported by a dynamic spring-strut dampening system, reducing the vibrations caused by driving surfaces.

All-around performance indoors and out over most surfaces, inclines and slopes, makes the Jazzy 614 HD an excellent heavy-duty power chair choice.


  • Depth adjustable footplate
  • Easy rear access to the batteries
  • 5 amp, off-board charger
  • Seat size options 18"-24"W x 18"-24"D
  • Foot platform
  • Shark joystick
  • In-line joystick mounting bracket
  • Dual enhanced in-line motors for greater efficiency, torque, range and performance
  • 450 lbs. weight capacity
  • 6” casters on front & rear for maximum stability
  • Active-Trac® ATX Suspension for enhanced performance over more varied terrain
  • Easy rear access to batteries
  • Seating up to 24” W x 24” D
  • Tool-less shroud removal
  • Easy serviceability
  • Depth adjustable foot platform
